DESCRIPTION

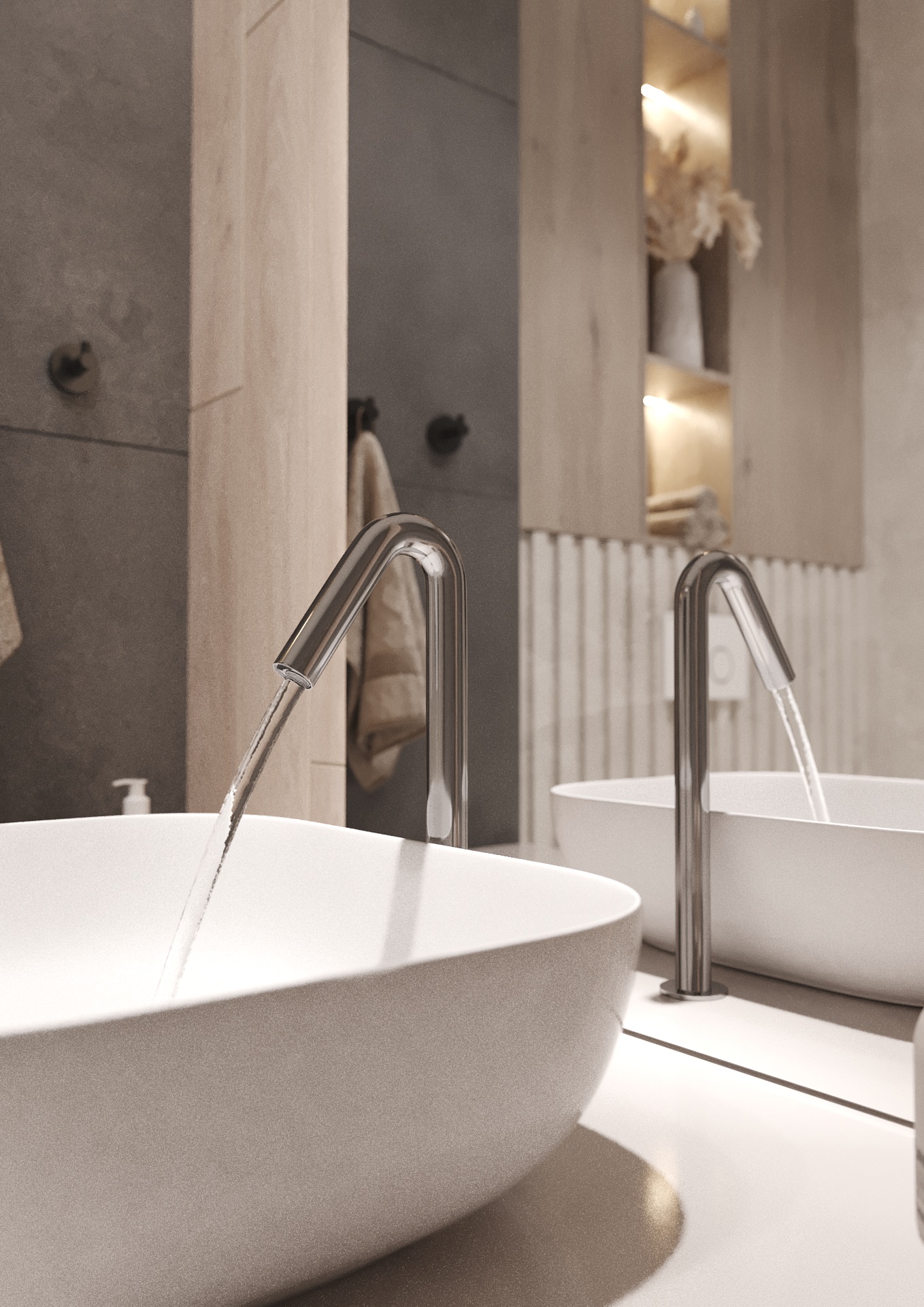

Sintra is the highlight of any high-quality washroom. Reduced to a simple design with a curved spout, the Benkiser Sintra fitting gives every washroom elegance. Sintra is available in chrome, black and various other colors.

Thanks to the hidden infrared sensor in the spout, hands are no longer in contact with germs on surfaces during the washing process. The water flow is activated automatically when the hands is held under the spout. The water flow stops automatically when the hands moves away from the spout. The absolutely contact-free washing process improves hygiene and at the same time reduces water consumption.

The desired water temperature can be set with the optional Preset Thermostatic Mixing Valve from Benkiser.

Check out the Sintra Soap Dispenser, available at Benkiser to combine perfectly with the Sintra faucet. The soap dispenser also has a hidden sensor in the spout.

The soap dispenser pump is activated automatically when you put your hands under the spout. A pre-defined amount of soap is dispensed to you by the soap dispenser without contact.

The soap tank can be filled easily. There is also a large selection of different soaps available in stores. The soaps and disinfectants recommended by Benkiser can be found here.

FEATURES

Contactless electronic basin valve. For cold or premixed water. Power supply through IP67 dual power input box, which enables operation with 9v battery or 9v transformer. In the event of a power failure of the 9v power supply unit, the faucet is still working thanks to an integrated 9v battery backup. This backup system allows permanent operation of the valve. Chrome-plated body, other coatings available on request. Activated by a sensor integrated in the spout, including a display when the battery level is low. Filters included. Functions that can be set by remote control: sensor range, safety switch-off, delay in, delay out, switch-off and back to factory settings.

OPERATION

The faucet is activated automatically as soon as the user puts his hand in the sensor area and stops when the user removes his hand again.

USE

Combines an elegant design with vandal-proof properties. Easy installation and durable even in the harshest installation environments. Saves water, maintains cleanliness and protects against cross-contamination. Ideal for offices, hotels and restaurants.

POWER SUPPLY

  • – IP67 dual power input box with 9V power supply
  • – IP67 dual power input box with 9V battery
    (Battery not included)

FLOW PRESSURE

  • 0.5-8.0 bar (7.0-116.0 psi); at an operating pressure of over 8 bar use a pressure reducing valve

WATER SUPPLY

  • Cold or premixed water

WATER SAVING OPTIONS

  • 4 l / min / 1.0 gpm – standard
  • 1.89 l / min / 0.5 gpm – PCA spray

WATER TEMP

  • 70°C Maximum

SAFETY SHUTDOWN

  • 90 seconds, adjustable by remote control

HYGIENE FLUSHING

  • 24 hours after the last use, for 30 seconds

Sintra soap dispenser

Sintra soap dispenser

The Sintra soap dispenser is the perfect complement to the Sintra faucet. Reduced to a simple design with a curved spout, the Benkiser Sintra soap dispenser gives every washbasin elegance. This one is available in different colors like chrome, black and many others. This makes it, just like the matching fittings, the highlight of every high-quality washroom.

Hidden in the spout, the infrared sensor automatically gives you a predefined amount of soap. All you have to do is put your hands under the spout. The soap is dispensed from the soap dispenser without contact, which prevents cross-contamination.

The soap tank can easily be filled.

There is also a large selection of different soaps available in stores. The soaps and disinfectants recommended by Benkiser can be found The soap tank can be filled easily. There is also a large selection of different soaps available in stores. The soaps and disinfectants recommended by Benkiser can be found here.

The Sintra faucet is ideal to combine it with the Sintra soap dispenser. As it also has a hidden sensor in the spout.
